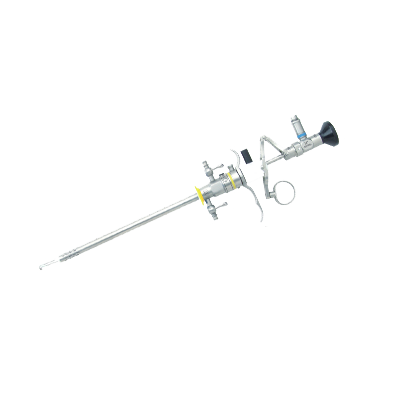

Resectoscope QD-2
| 1.Adopted high quality stainless steel material | 2.Endoscope adopts German optic glass and fiber |
| 3.With direction index | 4.Sapphire lens cover never abrasion |
|
5.Endoscope can stand of temperature of 134°C/273°F for sterilization |
6.24Fr Outer sheath and 21 Fr inner sheath make little wound and is very fit for Asian people |
| 7.Big space of electrode can shorten the operation time |
8.The high temperature metal ceramic head can stand more than 10000V pressure |
| 9.Free maintenance valve | 10.When outer sheath main fixed the endoscope and handle can rotate freely |
| 11.Rotating style make more convenient | 12.Cutting tumor has gained patent |
| No. | Name | Specification | Code |
| 1 | 12 ° Endoscope | 4mm×314mm | J0312D |
| 2 | Working element | Active / Passive | Q6010B/Q6020B |
| 3 | Outer sheath | 27Fr×182mm | Q4027B |
| 4 | Obturator for outer sheath | Movable | Q4077B |
| 5 | Inner sheath&obturator (Oblique lip) | 25Fr×195mm | Q4025B |
| 6 | Inner sheath valve | No | Q4033 |
| 7 | In-flow valve | No | T7202A |
| 8 | Cutting loops | 4mm×282mm | Q6211 |
| 9 | Ball-style cutting loops | 4mm×287mm | Q6301 |
| 10 | Spade-style cutting loops | 4mm×282mm | Q6302 |
| 11 | Needle-style cutting loops | 4mm×284mm | Q6221 |
| 12 | Cutting tumour loops | 4mm×282mm | Q6213 |
| 13 | Fistula instrument | 18Fr | Q4518 |
| 14 | HF cord | 3m | U8412B |
| 15 | Suction device | Hoffman | U8307 |
| 16 | Cleaning rod | 3mm×340mm | U8601C |
| 17 | Light cable | 4mm×2m | U8724 |
